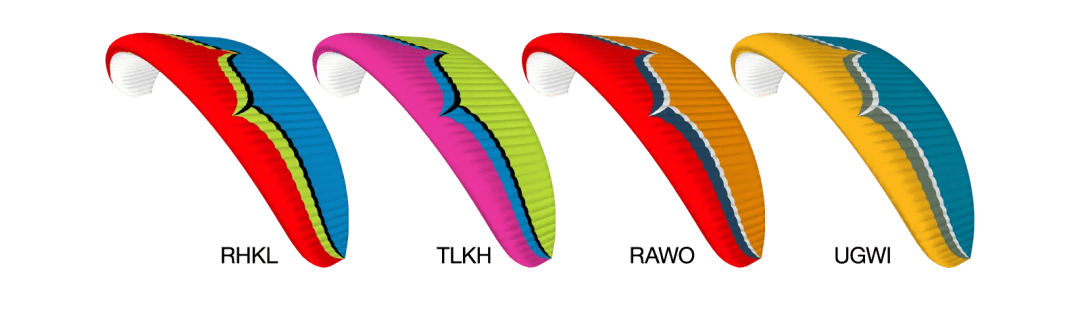

Design
Technical Data
|
SIZES
|
20
|
22
|
24
|
26
|
28
|
30
|
|---|---|---|---|---|---|---|
|
Number of cells
|
56
|
56
|
56
|
56
|
56
|
56
|
|
Flat Area (m2)
|
20
|
22
|
24
|
26
|
28
|
30
|
|
Projected area (m2)
|
17.2
|
18.9
|
20.6
|
22.3
|
24.0
|
25.7
|
|
Flat Span (m)
|
10.57
|
11.08
|
11.58
|
12.05
|
12.51
|
12.95
|
|
Projected Span (m)
|
8.3
|
8.71
|
9.09
|
9.47
|
9.82
|
10.17
|
|
Projected Aspect Ratio
|
4.02
|
4.02
|
4.02
|
4.02
|
4.02
|
4.02
|
|
Flat Aspect Ratio
|
5.6
|
5.6
|
5.6
|
5.6
|
5.6
|
5.6
|
|
Root Chord (m)
|
2.42
|
2.54
|
2.66
|
2.76
|
2.87
|
2.97
|
|
Glider Weight (kg)
|
4.63
|
5.04
|
5.3
|
5.6
|
5.9
|
6.17
|
|
PG (EN) Weight Range (kg)
|
55-75
|
55-90
|
70-95
|
80-110
|
95-125
|
110-140
|
|
PPG (DGAC) Weight Range (kg)
|
55-110
|
55-120
|
70-130
|
80-145
|
95-160
|
110-170
|
|
DGAC
|
DGAC
|
DGAC
|
DGAC
|
DGAC
|
DGAC
|
DGAC
|
* Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.
